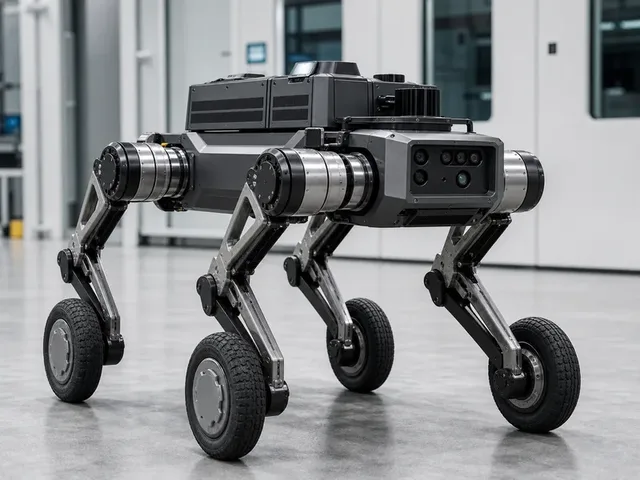

D2 Max

Quadruped navigation combines classical SLAM with proprioceptive terrain sensing. The robot builds environment maps using LiDAR and cameras while simultaneously using force sensors in its feet and joint torque measurements to understand ground conditions beneath each footstep. This dual approach — seeing ahead while feeling underfoot — enables navigation through environments that would confuse purely vision-based systems, like muddy terrain or surfaces covered in snow. Path planning for legged robots is more complex than for wheeled platforms because the planner must consider foothold locations, body clearance, and dynamic stability at every step.

AI in quadruped robots increasingly relies on learned locomotion policies trained in simulation and transferred to real hardware. Rather than hand-coding gait controllers for every terrain type, modern systems use reinforcement learning to develop robust walking behaviors that generalize across surfaces. This sim-to-real approach has dramatically improved quadruped agility and robustness. Higher-level AI handles mission planning, autonomous inspection routines, anomaly detection, and integration with enterprise software systems for industrial applications.

Quadruped robots carry sophisticated sensor payloads combining environmental perception with proprioceptive awareness. Outward-facing sensors (LiDAR, cameras, depth sensors) map the environment and identify obstacles. Inward-facing sensors (joint encoders, IMUs, force/torque sensors) monitor the robot's own state — its balance, footing, and body orientation. The fusion of external and internal sensing is uniquely important for legged robots because stable locomotion requires constant feedback about both where the robot is going and how its body is responding to each step. Payload-mounted inspection sensors (thermal cameras, gas detectors, acoustic sensors) add application-specific perception on top of the mobility platform.

Legged locomotion is energy-intensive, and battery life is a critical constraint for quadruped robots. Most commercial quadrupeds offer one to two hours of active operation per charge. Power consumption varies significantly with gait speed, terrain difficulty, and payload weight. Battery-swap systems are common in industrial deployments, allowing continuous operation through multiple battery packs. Some facilities install automatic charging stations where the robot can dock and recharge between patrol routes. Efficient gait selection — using the least energy-consuming walking pattern appropriate for current terrain — is an active optimization area.

Quadruped robots operating in industrial and public environments must handle safety across multiple dimensions. Physical safety features include compliant leg designs that absorb unexpected impacts, emergency stop buttons, and speed-limiting zones around detected humans. Autonomous safety behaviors include automatic sit-down when battery reaches critical levels, return-to-base when communication is lost, and avoidance of detected hazards. For outdoor operation, IP ratings (typically IP54 or higher) ensure resistance to dust and water. Operational geofencing ensures the robot stays within approved areas.

Quadruped robotics is moving toward greater autonomy, longer endurance, and expanded manipulation capability. The addition of robotic arms to quadruped platforms is creating mobile manipulation systems that can not only inspect but also interact with the environment — turning valves, pressing buttons, or collecting samples. Improved batteries and more efficient actuators are extending operational windows. Fleet coordination of multiple quadrupeds for large-area coverage is becoming practical. As costs decrease, quadruped robots are expanding from premium industrial inspection tools into more accessible commercial and even consumer applications.
